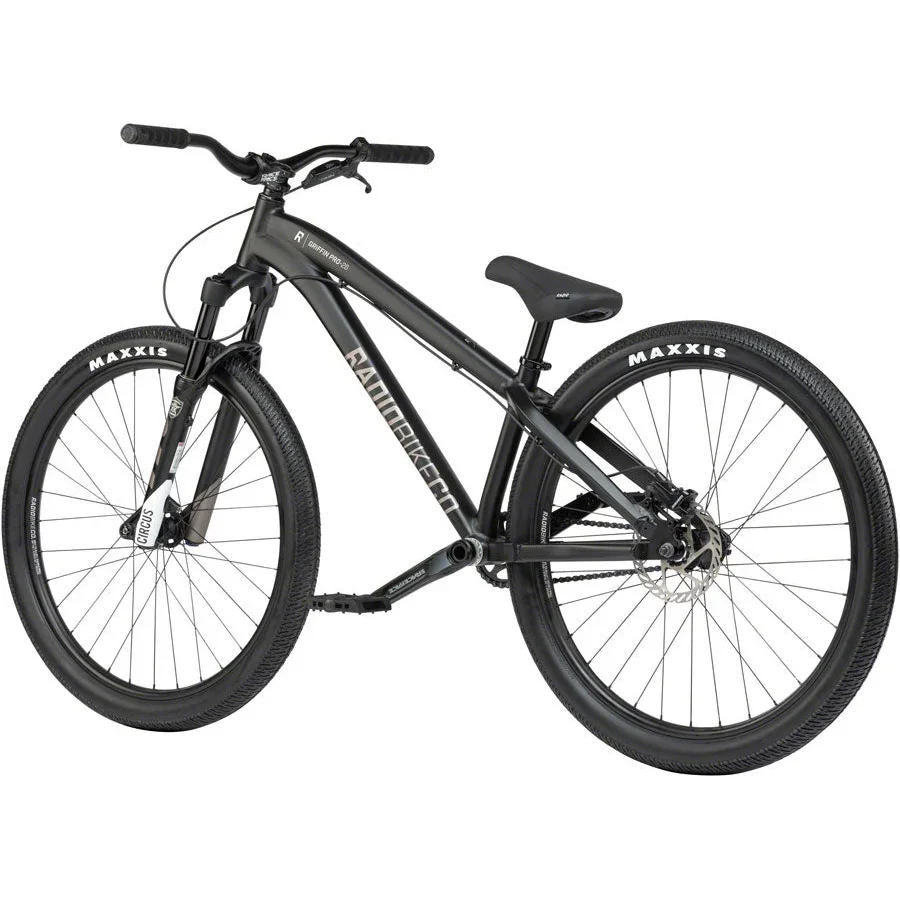

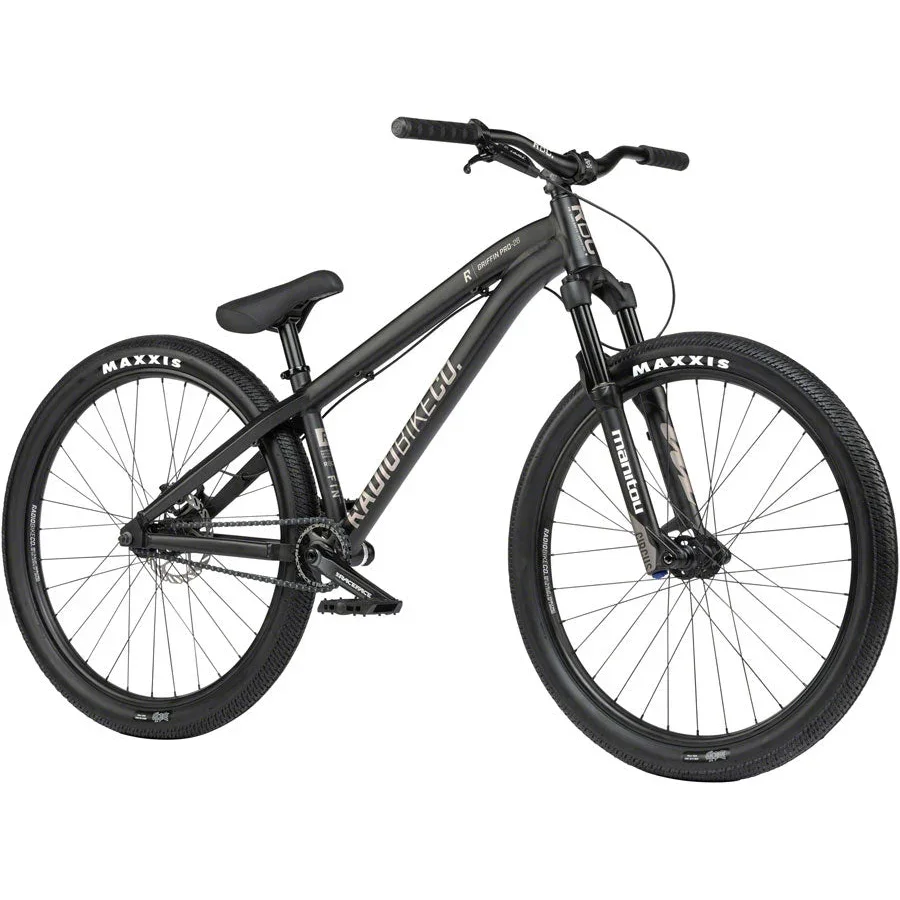

Griffin Pro 26" Dirt Jump Bike - 22.8" TT
A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.
The crème de la crème of 26” bikes, the Griffin PRO is built around a super light and stiff 6061-T6 Alloy frame and is adorned with Manitou “Circus Expert” 100mm forks and a premium level parts package from Race Face and Maxxis.
Specifications
- FRAME RADIO “GRIFFIN PRO” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
- FORK MANITOU “CIRCUS EXPERT” 100mm travel
- HANDLEBAR RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
- GRIPS RADIO “FREQUENCY XL” grips, flangeless, 160mm
- STEM RACE FACE “CHESTER 35” front load stem, alloy, 40mm reach
- HEADSET FSA “NO.42/ACB-A” integrated a-headset, 1-1/8″-1.5″
- BRAKE LEVER TEKTRO “RS-360A” front, SRAM “DB-LVL-A1” rear
- BRAKE TEKTRO “ARIES” mechanical disc brake front, SRAM “DB-LVL-A1” hydraulic disc brake rear, 160mm rotor
- CRANK RACE FACE “AEFFECT” crank alloy, 170mm
- BB RACE FACE “AEFFECT” crank alloy, 170mm
- PEDALS RADIO “SLIM” nylon/fiberglass pedals
- CHAIN SALT “AM” chain, WZ1 type
- SPROCKET RACE FACE “AEFFECT” alloy sprocket 28T
- DRIVER 10T cassette driver, sealed bearing
- FRONT HUB RADIO “PRO-DJ” disc hub, sealed, 15mm alloy through axle, 32h
- REAR HUB RADIO “PRO-DJ” disc hub, sealed, 3/8″s crmo axle, 32h
- FRONT RIM RADIO “DB-T25” rim, double wall, sleeved
- REAR RIM RADIO “DB-T25” rim, double wall, sleeved
- SEAT RADIO “CENTURY” pivotal seat, fat padded
- SEAT POST RADIO “PIVOTAL” seat post, alloy
- SEAT CLAMP RADIO “SLIM” 31.8mm alloy clamp
- TIRES MAXXIS “DTH” tires, 2.3″ front & rear
- WEIGHT 11.31kg / 24.94lbs
Geometry
FRAME GEOMETRY
- TOP TUBE LENGTH 22.8″
- CHAIN STAY LENGTH 15″
- HEAD TUBE ANGLE 70°
- SEAT TUBE ANGLE 70°
- BOTTOM BRACKET HEIGHT 14mm drop
- STANDOVER HEIGHT 10.2″
HANDLEBAR GEOMETRY
- RISE 50mm
- WIDTH 760mm
- BACKSWEEP 8°
- UPSWEEP 3°
